Kanal Tipi Sıcaklık Sensörü - THERMasgard® TM 65

Ürün Kodu : TM65-U 100MM
%18 +KDV
97,75

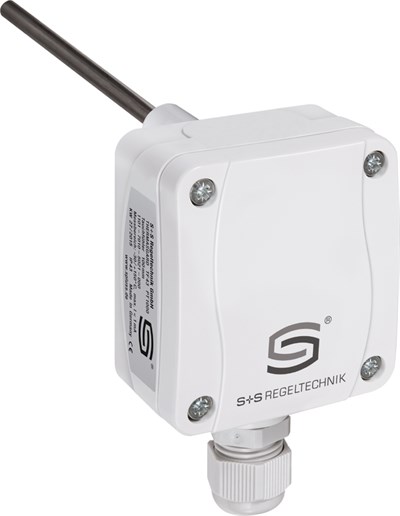

Calibratable temperature measuring transducer THERMASGARD® TM 65 with eight switchable measuring ranges, continuous linear output, with enclosure made of impact-resistant plastic, enclosure cover with quick-locking screws, straight protective tube and either with or without optional display. For detecting temperatures in liquid or gaseous media. Use the stainless steel immersion sleeves for aggressive media. Applications of the TM-65 are in piping systems, in heating technology, in storage tanks, in district heating compact stations, in hot-water and cold-water systems, in oil and lubricant circulation systems, in mechanical, apparatus and plant engineering as well as throughout the industrial sector. The temperature measuring transducers are factory-calibrated. Adjustment ? fine adjustment by the user is possible (zero point offset is adjustable).

Power supply24 V AC ±10%
15...36 V DC
Power consumption< 2.2 VA / 24 V AC
< 1 W / 24 V DC
SensorPT1000
Temperature-measuring range-20...+150°C DIP Switch ile ayarlanabilir.
Deviation, temperature±0.2 K at 25°C
manuelle Nullpunkt Korrektur±10 K,
adjustable by potentiometer
Output signal_active_temperature0-10 V
Protection classIII (according to EN 60730)
StandardsCE conformity according to EMC Directive 2014???30???EU
FehlererkennungFühlerkurzschluss, Fühlerbruch

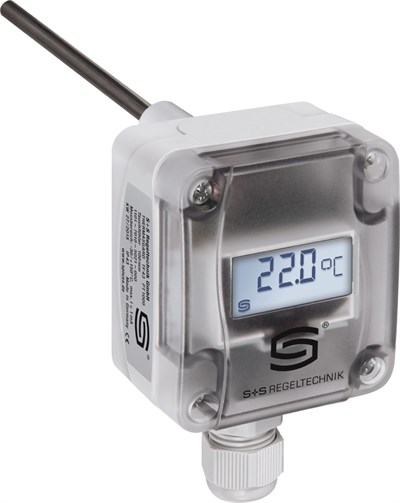

DisplayTwo row, section c. 36 mm x 15 mm (W x H)
Operation range, temperature-35 ... 70 °C
Operation range, humidity0 ... 95 %r.H. non-precipitating air
Storage temperature-35 ... 70 °C
EnclosurePolyamide, 30% glass-globe reinforced,
Traffic white (similar to RAL 9016),
Deckel ist transparent (PC)
Enclosure dimensions72 x 64 x 43.3 mm (Tyr 1)
Electrical connection0.14 - 1.5 mm², 3-wire connection, via terminal screws on circuit board
Sensor protectionx 150 mm
