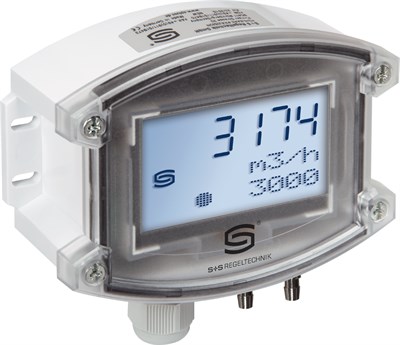

Ölçüm birimleri : [m3/s][m3/min] [m3/h] [l/s] [l/min] [l/h]
| Power supply | 24 V AC ±10% 15...36 V DC |
|---|---|
| Power consumption | < 3.5 VA / 24 V AC < 2 VA / 24 V DC |
| Sensor | piezoresistiver Differenzdrucksensor |
| Bursting pressure | 10000 Pa |
| Sum of linearity and?hysteresis | < ±1% des Endwerts (? ±10Pa) |
| Zero point offset | ±0.7% of the end value (? ±7 Pa) |
| Temperature drift | ±0.1% ? °C |
| Temperature-compensated | 0-50°C |
| Long-term stability | ±1% pro Jahr |
| K-Faktor | 0 bis 3000 (einstellbar) |
| Measuring range, pressure | 0 ... 1000 Pa, volume flow: 10...100% [m3/s][m3/min] [m3/h] [l/s] [l/min] [l/h] filter monitoring: 10...100% liquid level detection: 0 - 8 ... 14cm |
| Deviation pressure | ±1.5% of the end value (? ±15 Pa), at 25°C |
| manuelle Nullpunkt Korrektur | ±10 % des Messbereiches, adjustable by potentiometer |
| Signal filtering | switchable 1 s / 10 s |
| Switching output | 1x Changeover contact, 1, 24 V, Ohmic load |
| Hysteresis of the switch steps | 1 % des Druckbereiches (?10 Pa) |
| Output signal pressure | 0-10 V |
| Media | saubere Luft (nicht kondensierend) oder gasförmige, nicht aggressive, nicht brennbare Medien |
| Protection class | III (according to EN 60730) |
| Standards | CE conformity according to EMC Directive 2014???30???EU |
| medienberührende Teile | ms, Ni, PVC mit Weichmachern, Nylon, PU, Si |
| Display | Three row, section c. 70 mm x 40 mm (W x H) zur Anzeige des Volumenstroms, Differenzdrucks, Verschmutzungsgrades oder Niveaussowie zur Einstellung des Schaltpunktes, k-Faktors, Messbereichsgrenzen und weiterer Einstellungen. maximaler Anzeigewert: 999999 |
| Operation range, temperature | -35 ... 70 °C |
| Operation range, humidity | 0 ... 95 %r.H. non-precipitating air |
| Storage temperature | -35 ... 70 °C |
| Type of pressure | Differential pressure |
| Media temperature | 0 ... 50 °C |
| Above???below-atmospheric pressure | max. ±100 hPa |
| Enclosure dimensions | 126 x 90 x 50 mm (Tyr 2) |
| Enclosure | Polyamide, 30% glass-globe reinforced, with quick-locking screws (slotted ? Phillips head combination), Traffic white (similar to RAL 9016), Deckel ist transparent (PC) |
| Cable gland | M16x1.5; maximum inner diameter ø 10.4 mm including strain relief, exchangeable. |
| Installation | 2x and 4x screw ø 4 mm at a distance of 112 mm x 20 mm |
| Electrical connection | 0.14 - 1.5 mm², 6-wire connection, via removable plug-in screw terminal |
| Process connection | 4 ? 6 x 11 mm (hoses Ø 4 ? 6 mm), metal pressure connection nozzles |
| Protection type (IP) | 65 (according to EN 60529) |
